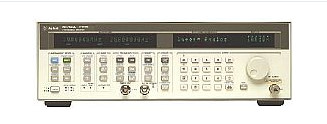

Keysight Agilent 83751A Synthesized Sweeper 2 GHz to 20 GHz
Description of Keysight Agilent 83751A
The Keysight 83751A sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent.
Overview and Features of 83751A Synthesized Sweeper
- Fully phase locked analog sweep for accuracy and speed
- Flat and accurate output power to characterize the linear response of the test device
- Offset frequency sweep for mixer test
- Keysight 8350 programming mode for backwards compatibility
Stepped Sweep Mode Resolution:
Settable 1 Hz, Display 1 kHz Accuracy: See timebase specZcations Minimum step size: Settable 1 Hz, Display 1 kHz Number of points: 2 to 1601 Switching time/‘int: 7 ms + 8 ms/GHz step (Up to 50 ms switching time can occur when crossing the 2 GHz bandswitch point.) Dwell time/point: 1 ms to 50 s
List of Options
| 001 | No step attenuator |
| 010 | Add step attenuator |
| 0B0 | Do not include manuals |
| 0B1 | Add Manual Set |
| 0B2 | Operating Manual |
| 0B3 | Service Manual |
| 1BN | Military Standard 45662A Calibration Certification |
| 1BP | Military Standard 45662A Calibration with Test Data |
| 1CM | Rackmount Kit |
| 1CP | Rackmount and Handle Kit |
| 1CR | Rack Slide Kit |
| 1E1 | 70 dB Step Attenuator |
| 1E4 | Rear Panel RF Output |
| 1E5 | High Stability Timebase |
| 1ED | Type-N RF output connector |
| 1EE | Source Module Interface Connector and Extension Cable |
| 1EE | Source Module Interface Connector and Extension Cable |
| 911 | Delete operation manual |
| 912 | Delete service manual |
| AB0 | Taiwan Quick Users Guide (Chinese localization) |
| AB1 | Korea Quick Users Guide (Korean localization) |
| AB2 | China Quick Users Guide (Chinese localization) |
| ABD | Germany Quick Users Guide (German localization) |
| ABF | France Quick Users Guide (French localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| AX2 | |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
