Telecom AQ6370D Yokogawa Spectrum Analyzer Optical 600-1700NM

Name: Telecom AQ6370D Yokogawa Spectrum Analyzer Optical 6001700NM
Brand: Yokogawa
Price: 1 USD

China Telecom AQ6370D Yokogawa Spectrum Analyzer Optical 600-1700NM factory

Brand Name : Yokogawa

Model Number : AQ6370D

Place of Origin : Japan

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Product name : Yokogawa Optical Spectrum Analyzer

Measurement : Fast

Wavelength range : 600 to 1700nm

Wide dynamic range : 78dB typ

Condition : Pre-Owned

Functions : Tested in Full Working Conditions

Contact Now

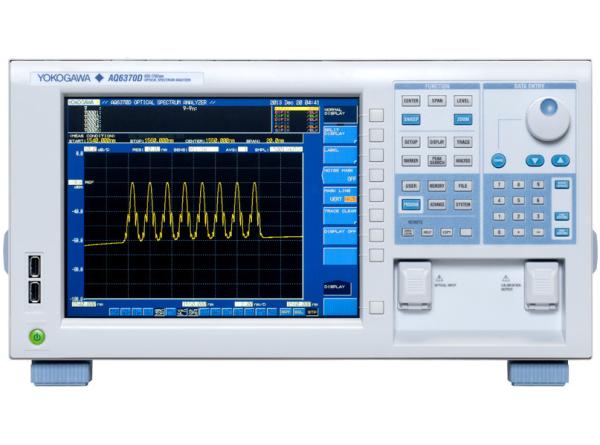

Yokogawa AQ6370D Optical Spectrum Analyzer Telecom 600 - 1700 Nm Optical Spectrum Analyzer

Description of Yokogawa AQ6370D

The Yokogawa AQ6370 Optical Spectrum Analyzer packs the power of cutting-edge technologies and user-oriented advanced analysis features. The Yokogawa AQ6370 wavelength accuracy at full range (600-1700 nm) has improved over previous versions. S-band calibration is included as a standard feature for the Ando AQ6370. The new Yokogawa AQ6370 also offers increased measurement speed at higher sensitivity mode. Many new analysis functions have also been included.

Feature:

World-Class Optical Performance
- Wavelength range: 600 to 1700nm
- High wavelength accuracy: ±0.01nm
- High wavelength resolution: 0.02nm
- Wide dynamic range: 78dB typ.
- Wide level range: +20 to -90dBm
- Fast measurement: 0.2 sec. (100nm span)
- Applicable to single-mode and multimode fibers
Standard and High-Performance Models
- There are two models available, Standard and High performance. The High performance model provides even higher wavelength accuracy and dynamic range.
High wavelength resolution: 0.02nm
- High Wavelength Accuracy: ±0.01nm
- High performance model: ±0.01nm (C band) Standard model: ±0.02nm (C+L band)

List of Options

02	600 to 1700 nm 0.5 nm to 1100 nm (full span), and 0nm
12	Standard Model
22	High Performance Model Option
22	High Performance Model
D	UL/CSA Standard and PSE Compliant 125V
FC	Connector adapter for optical input
FC	Optical input Aq9447 Fc Option
FC	Connector adapter for optical input
H	GB Standard
L1	With calibration source option (Nc)
L1	Wavelength Reference Source
L1	Wavelength Reference Source
RFC	Calibration Output Aq9441 Fc Option
RFC	Universal adapter for calibration output
RFC	Universal adapter for calibration output
